OAuth 2.0 Scopes for Laserfiche APIs

Note: The following guide only applies to Laserfiche Cloud.

Laserfiche APIs use the OAuth 2.0 protocol for authentication and authorization. Laserfiche supports common OAuth 2.0 scenarios such as those for web applications, services, and single-page applications.

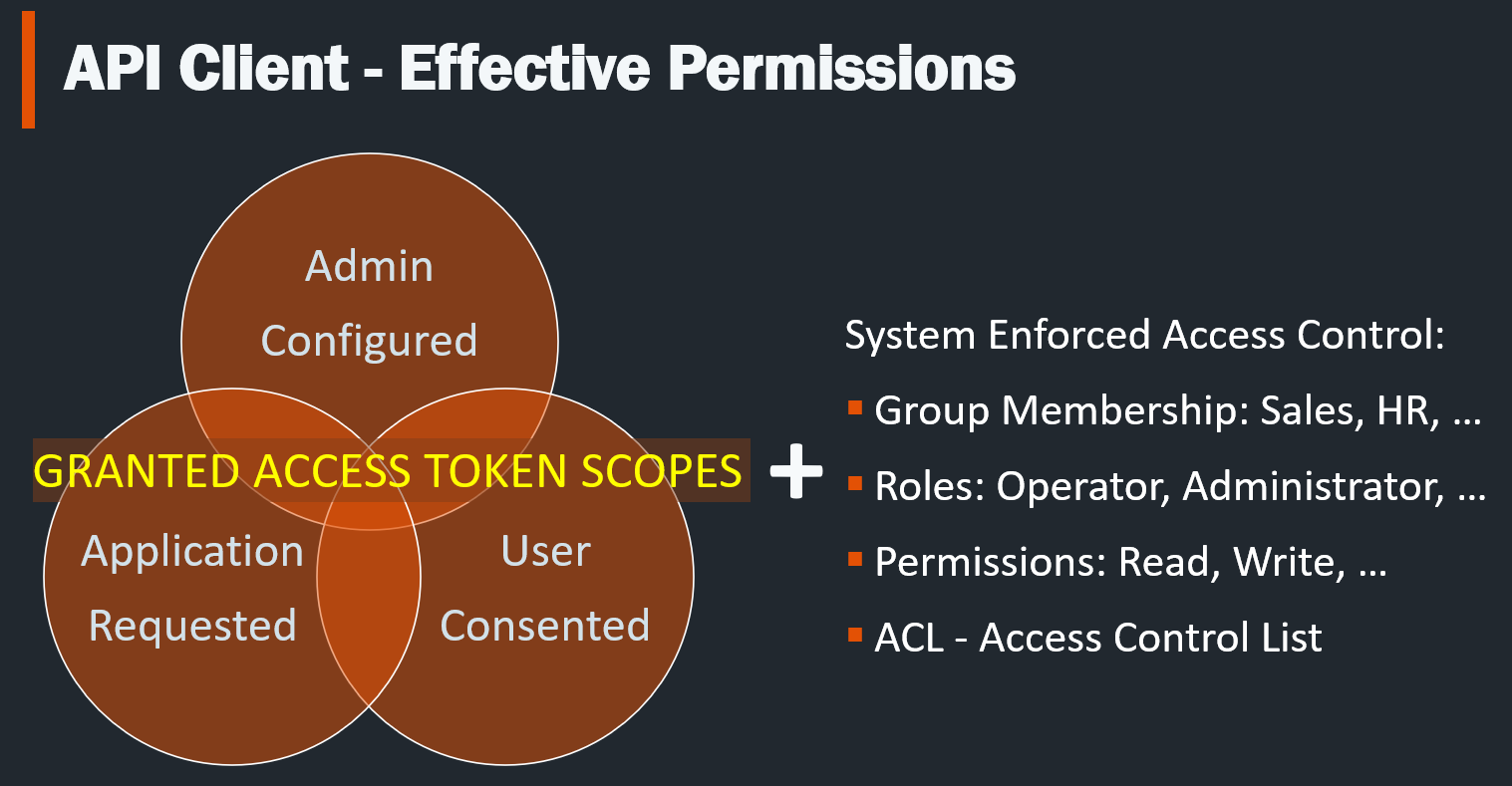

OAuth access tokens authorize access to protected resources. Scopes further define the type of protected resources the app can access. A scope is a permission to access resources needed by an application to perform its functionality. An application is at most granted the administrator pre-approved scopes or more restrictive scopes depending on:

  • User consented scopes (only applies to user facing applications).
  • The application requested scopes, which can be more granular than the administrator pre-approved scopes.

An application should be designed to provide useful limited functionality when only a subset of the requested scopes is granted. As a best practice, request the least privileged scopes that your app needs in order to access data and function correctly. The effective permissions granted to your app may be further constrained by the privileges of the signed-in user.

Using Scopes

Configure Pre-Approved Scopes in the Developer Console

Before an app can request an access token with scopes, a Developer Console Administrator must first pre-approve the scopes that can be requested. This is to ensure the app cannot request unapproved scopes and be granted inappropriate access to Laserfiche resources. The application will only have access to the intersection of the scopes configured here AND the access rights of the signed-in user or service principal. This is especially important with the table API and project-based security. See the table API security overview for details.

  1. Sign in to the Developer Console.
  2. In the Applications listing, select the app you want to configure.
  3. On the App Configuration page, select the Authentication tab.
  4. In the OAuth 2.0 Scopes section, select the needed scopes for your app to function properly. See below for the available scopes and what they represent for the different APIs.

Requesting an Access Token with Scopes

When web applications and single-page applications request access tokens with scopes as part of the authorization flow, a user will be prompted with a consent form to grant or deny the requested scopes. For service applications, the pre-approved scopes are the scopes granted if requested by the app. See the below guides on how to request an access token with scopes for your app type.

Available Scopes

See the following lists of available OAuth 2.0 scopes.

Repository API

Scopes Description
repository.Read Allows the app to read the content of Laserfiche repositories on behalf of the signed-in user.
repository.Write Allows the app to modify the content of Laserfiche repositories on behalf of the signed-in user.

Note: For backwards compatibility, access tokens without any scopes defined will have full access to v1 repository APIs. For v2 repository APIs, scopes are required.

Repository API Granular Scopes

An application can request more granular scopes than the ones pre-approved in the Developer Console. Repository API granular scope strings follow this format: repository[/<resource path>].<access rights> where:

  1. repository is a constant string representing any version of the Repository API (for example, https://api.laserfiche.com/repository/v1).
  2. Optionally, a resource path can be appended to it. This resource path represents the REST API URI section that the client is allowed to access.
  3. The string after the “.” separator represents which access rights are allowed. Access rights must be concatenated with no space in between and start with an upper case letter, for example, Read, Write, or a combination such as ReadWrite. An app can only access the repository APIs with access rights that match the ones defined in the granted scope(s).

Examples of Repository API granular scopes

Scopes Allowed Requests Examples API Description
  GET https://api.laserfiche.com/repository/v1/Repositories/r-abc123/Entries/1 Get entry 1
repository/Repositories/r-abc123/Entries/1.Read GET https://api.laserfiche.com/repository/v1/Repositories/r-abc123/Entries/1/fields Get fields assigned to entry 1
  GET https://api.laserfiche.com/repository/v1/Repositories/r-abc123/Entries/1/Laserfiche.Repository.Folder/children Get children entries in entry 1

Table API

All scopes must be both configured in the developer console and requested in the token request in order to apply to the access token. If using basic authentication, the scopes must be requested when the username/password combination is generated in developer console.

For tables, the resulting rights of the app are an intersection of the table read/write scopes configured, the project scopes configured, and whether the user or service principal has access to the specified projects. See the table API security overview for more details.

Scopes Description
table.Read Allows the app to read the content of Laserfiche lookup tables on behalf of the signed-in user.
table.Write Allows the app to modify the content of Laserfiche lookup tables on behalf of the signed-in user.
project scopes Allows the app to have access to resources in a specific project. To access global resources, add the “project/Global” scope. If no projects are specified the app will NOT have access to any tables even if table.Read and table.Write are specified

An application can ONLY access tables within the projects specified and only IF the signed-in user or service principal has the rights to those projects as well. See table API security overview for more information on how access rights and project scopes work together.

Table API Granular (Read/Write) Scopes

An application can request more granular scopes than the ones pre-approved in the Developer Console. Table API granular scope strings follow this format: odata4/table[/<table name>].<access rights> where:

  1. odata4/table is a constant string representing the Table API.
  2. Optionally, a table name can be appended to it. This table name represents the table that the client is allowed to access.
  3. The string after the “.” separator represents which access rights are allowed. Access rights must be concatenated with no space in between and start with an upper case letter, for example, Read, Write, or a combination such as ReadWrite.
    • An app can only access the table APIs with access rights that match the ones defined in the granted scope(s).

Examples of Table API granular scopes

Scopes Allowed Requests Examples API Description
odata4/table/MyTable(‘1’).Read GET https://api.laserfiche.com/odata4/table/MyTable(‘1’) Get row with key 1 in MyTable

The OAuth scope required to access each API is documented on the Swagger Playground.
